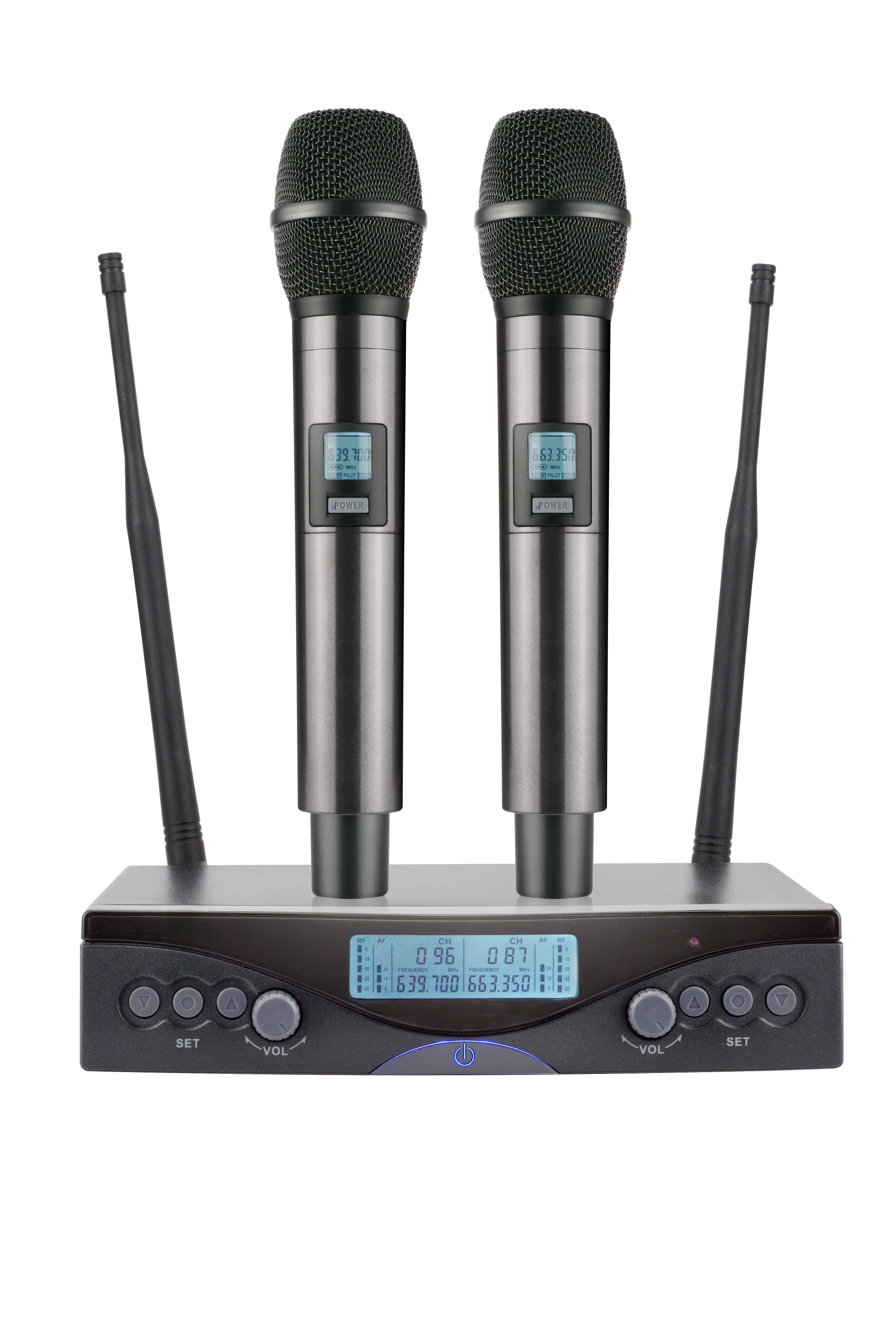

Dual 200 Channels Professional UHF wireless microphone
Professional UHF wireless microphone,dual 100x2 channels,Dual 100x2 selectable UHF frequencies.

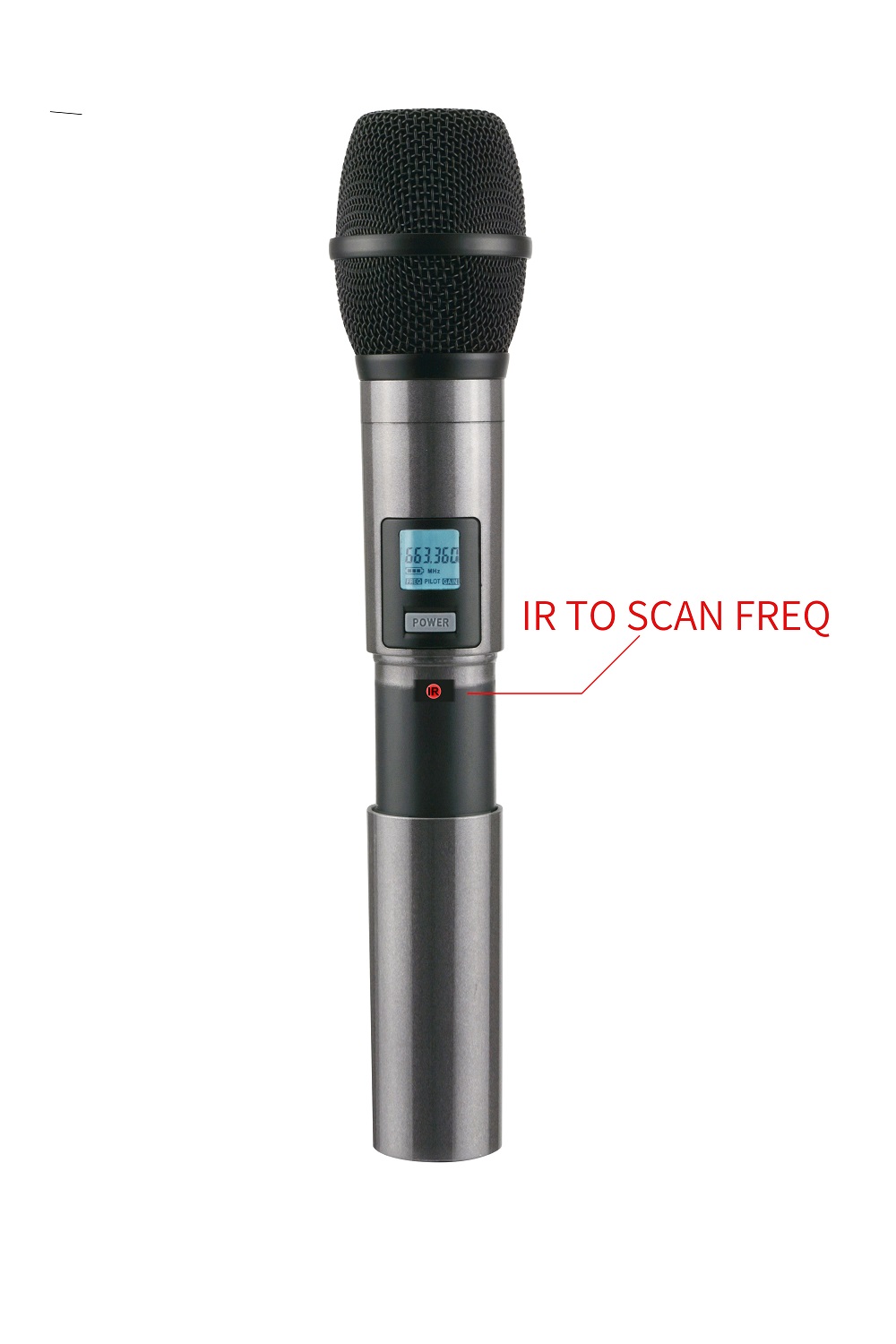

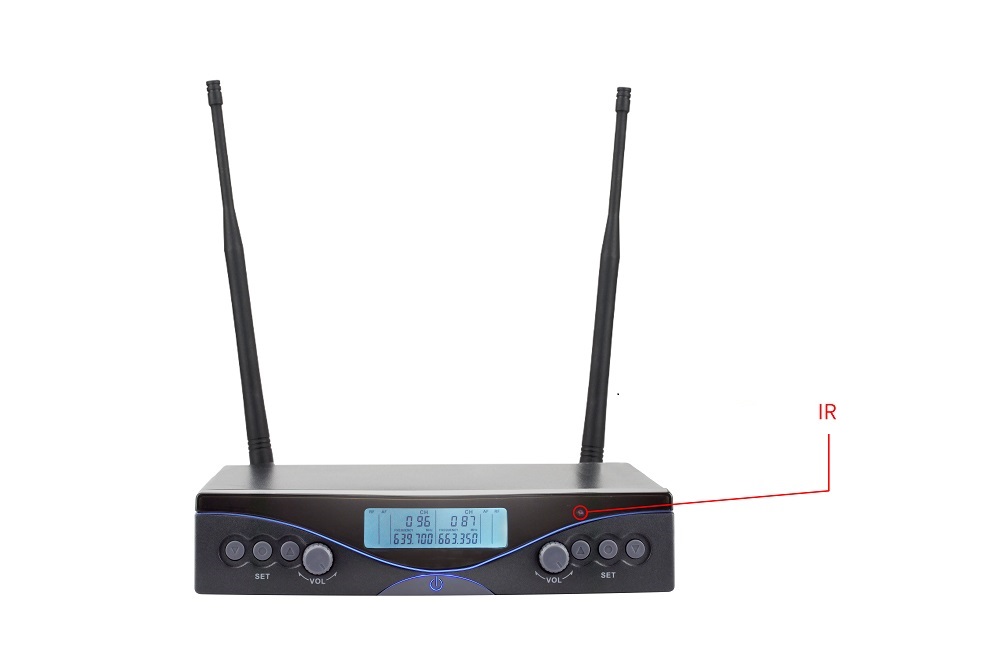

Handheld can auto scan frequency by IR in receiver.Wireless range up to 60M
Suitable for home,pro karaoke,school for speech etc vocal application
Specification:

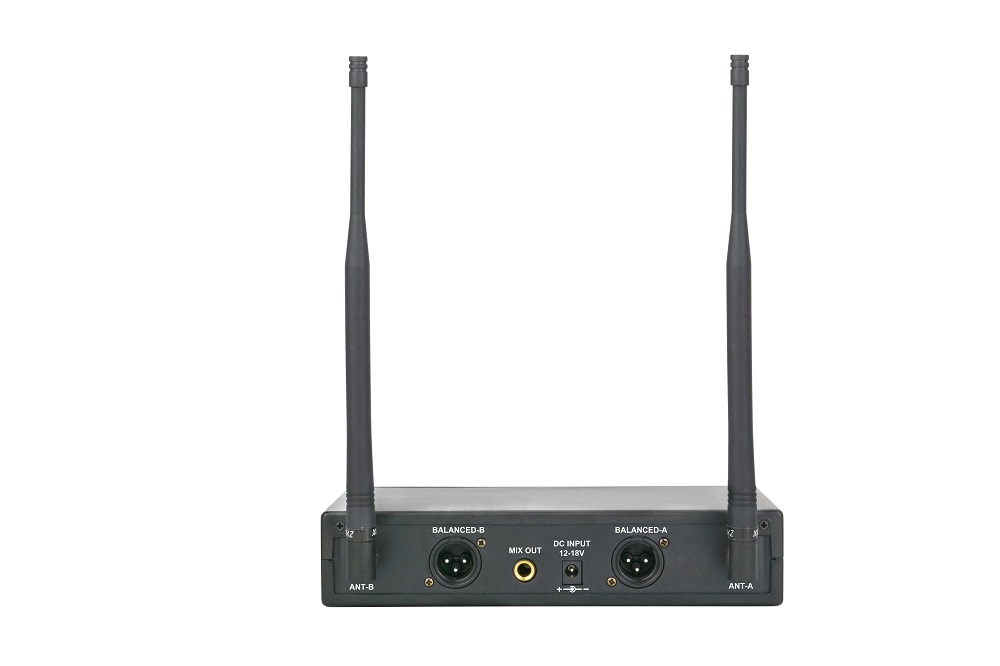

Receiver

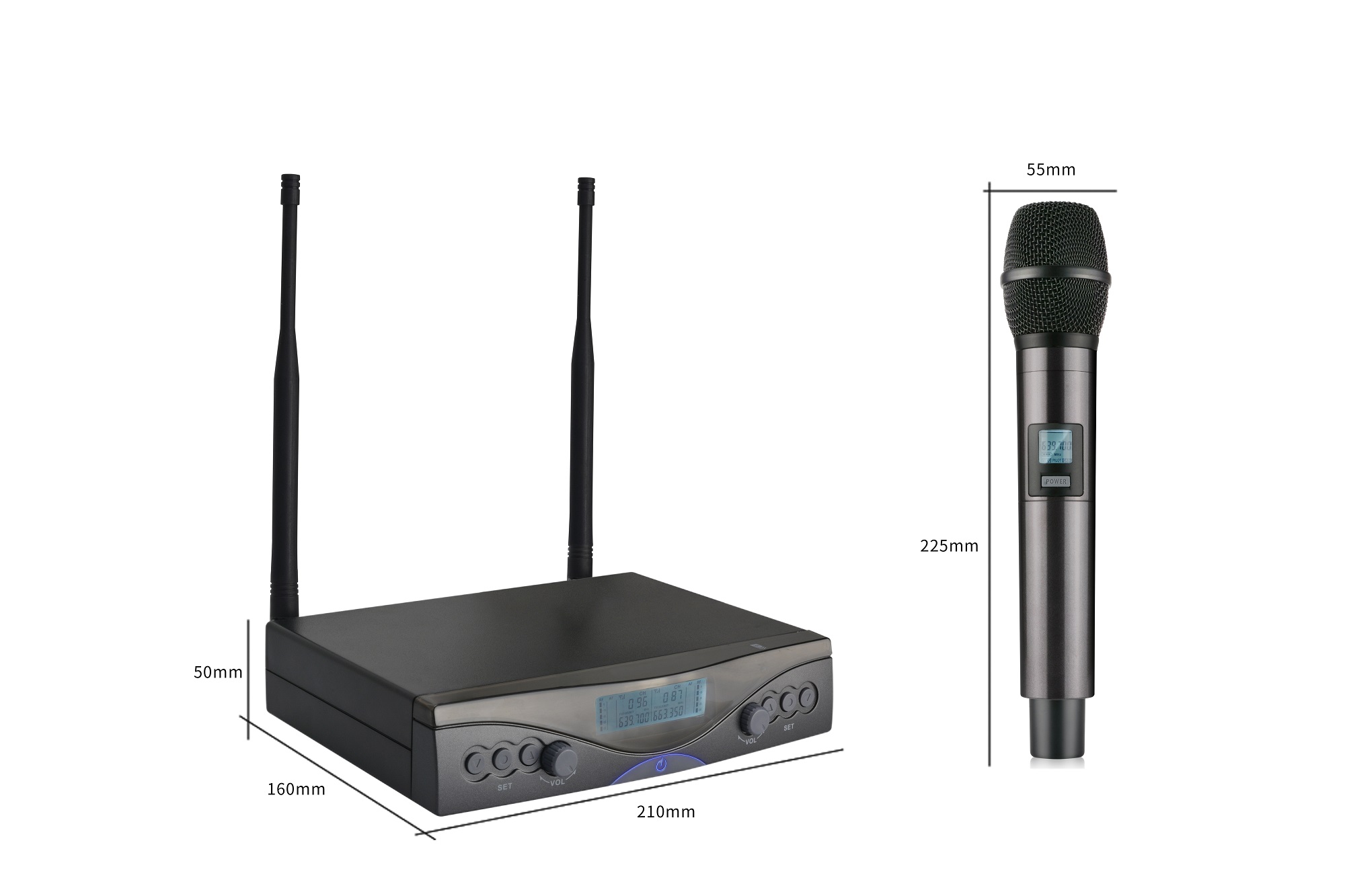

Main Frame Size : EIA STANDARD 1U Eight
Channels: 200 channel
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Carrier Frequency Range: UHF 475-865MHz
Modulation Mode: FM
Operating Range : 100M typical ( in open space)
Oscillation : PLL synthesized
Sensitivity : 5dBμV, S/N>60dB at 25 deviation
Band Width: 60MHz
S/N :>108dB
T.H.D. :<0.4% @ 1KHz
Frequency Range: 65Hz~18KHz ± 3dB
Power Supply: 100-240V AC50/60 Hz, 10W
Handheld Microphone
Carrier Frequency Range: UHF 475-865MHz
Oscillation: PLL synthesized
Harmonic radiation :<-63dBm
Band width : 60MHz
Max.Deviation Range: ±45KHz
Microphone Element : Cardioid Dynamic
RF Power Output : 8mW /15mW (Selectable)
Battery :AA X 2
Current Consumption :90mA
Battery Current / Life :Almost 8 Hours
